Drop on Demand
REA JET – the standard in its class!
Robust and Reliable:
The Large Character Ink-Jet Printer from REA JET
Dust, moisture or cold – no problem for the “drop on demand” marking system DOD from REA JET: The robust large character ink-jet printer is ideally suited for use in daily production. The coding and marking solution marks absorbent and non-absorbent material with text, data or logos in a type height from 3 to 140 mm. For larger fonts the modular components can be combined. The print heads are available with 7, 16 or 32 nozzles; their resolution conforms to all industry standards for marking and coding.
Whether paper, cardboard, foil, plastic or rubber, the DOD marks these surfaces just as effortlessly as metal, glass, ceramic, stone, wood, carpet, textiles or organic material. The marking system has also proven itself in heavy industry; it tolerates vibration and temperature fluctuations from -5°C up to 45 °C. The casing meets the specifications of protection class IP65 and protects the ink-jet printer from water and dust. For extreme production environments, the DOD is also available with reinforced casing, heated print head, compacted design and special models for areas subject to explosion hazards.
The industry demands high system availability and process stability. The DOD convinces with its reliability and minimum maintenance requirements: the print head nozzles are simply cleaned with a push of the button without the need of a separate flushing system. All models can be exchanged quickly and without complications. Products are clearly marked at speeds from up to 300 meters per minute.
The variably adjustable dot size (dot-size-control) contributes to the economical use of consumables. The DOD can handle pigmented and non-pigmented inks. REA JET has more than 400 suitable standard and special inks in our product assortment.
Advantages of REA JET Large Character Ink Jet Printer
- REA’s patented swivel-armature technology – robust and reliable
- Sparing use of consumables
- Suitable for pigmented and non-pigmented inks
- Product speeds up to 300 m/min (*application specific)
- IP65 protection class
- Contains REA Plug & Print Technology* (high system availability and process reliability via quick-change system for modular components
- REA Purge & Clean Technology*allows for rapid cleaning at the touch of a button
- REA DSC Technology* used for dot-size control

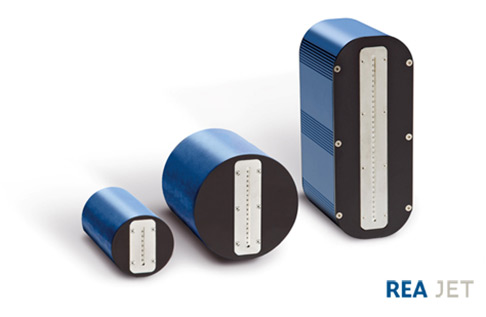

Print Head Variants
-
7-nozzles (one line markings with heights between 3-27mm)
16-nozzles (1-2 line markings with heights between 3-67mm)
32-nozzles (1-5 line markings with heights between 3-140mm)

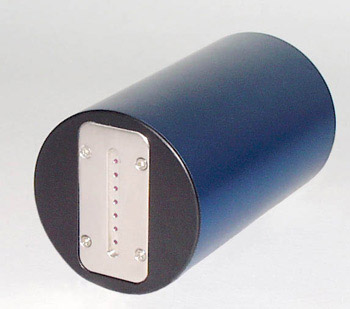

7-nozzles
- One-line print from 3 to 27 mm in height.
- High quality materials, robust mechanical engineering.
- Pigmented REA JET inks for dark substrates, solvent-based inks, etching inks for permanent coding and marking on metallic surfaces.
- Heavy duty – reinforced design for use in extreme conditions (optional).
- Different nozzle sizes for economical use of consumables.
- Optimal fine adjustment: REA DSC technology (RJ) (dot size control) – freely adjustable drop size for efficient use of consumables.
- Connection of one or more print heads to REA JET Controller.
- REA Plug & Print-technology (RJ) = high system availability through quick change system.
- Continuous configuration of print height through simple rotation of the print head – see illustration.

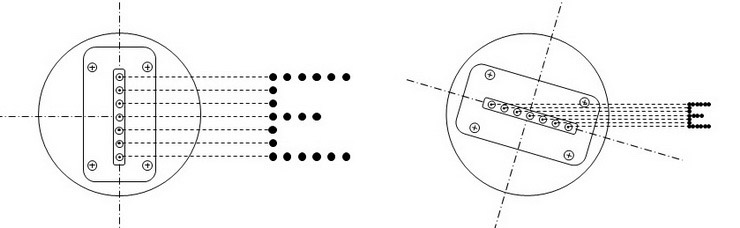

Print height adjustment on 7-nozzle print head via simple rotation

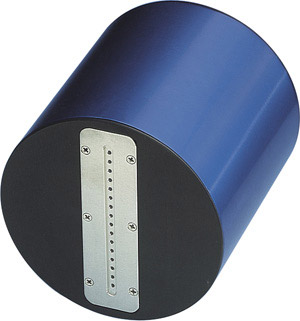

16-nozzles
- One-to two-lines of text from 3 to 67 mm in height.
- High quality materials, robust mechanical engineering.
- Pigmented REA JET inks for dark subsurface, solvent-based inks, etching inks for permanent coding and marking on metallic surfaces.
- Heavy duty – reinforced design for use in extreme conditions (optional).
- Different nozzle sizes for limited use of consumables
- Optimal fine adjustment: REA DSC technology (RJ) (dot size control) – freely adjustable drop size for efficient use of consumables.
- Connection of one or more print heads to REA JET controller.
- REA Plug & Print-technology (RJ) = high system availability via quick change system.
- Continuous configuration of print height through simple rotation of the print head – see illustration.

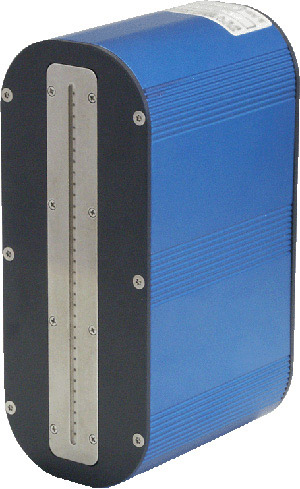

32-nozzles
- One to five lines of text from 3 to 140 mm in height.

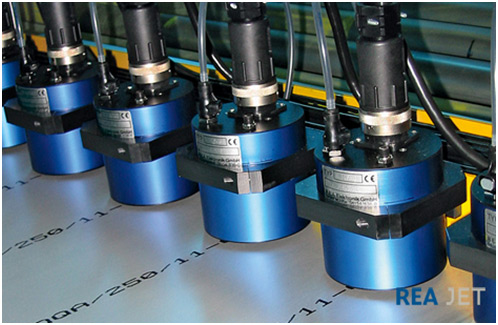

- Increased print height levels of up to 1m by using multiple print heads in cascading arrangement.
- High quality materials, robust mechanical engineering.
- Pigmented REA JET inks for dark background, solvent-based inks, etching inks for permanent coding and marking on metallic surfaces.
- Ventilated design for extreme temperature variations (prevents condensation).
- Different nozzle sizes for economical use of consumables.
- Optimal fine adjustment: REA DSC technology (RJ) (dot size control) – freely adjustable drop size for efficient use of consumables.
- Connection of one or more print heads to REA JET controller.
- REA Plug & Print-technology (RJ) = high system availability via quick change system.

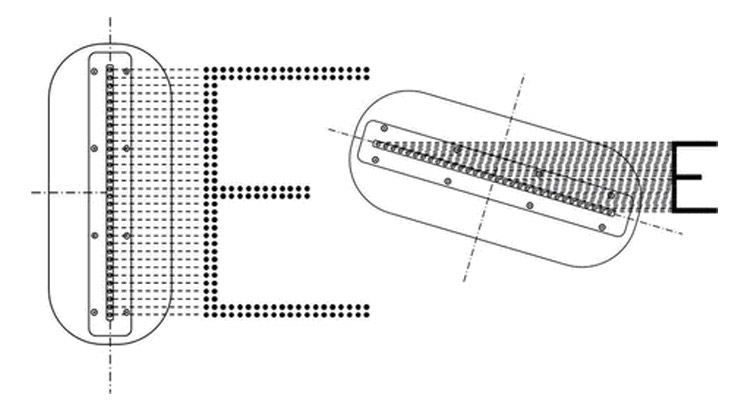

- Continuous adjustment of print height through simple rotation of the print head – see illustration.
